Mastering Vehicle Inspection with a Rifle Borescope in Canada

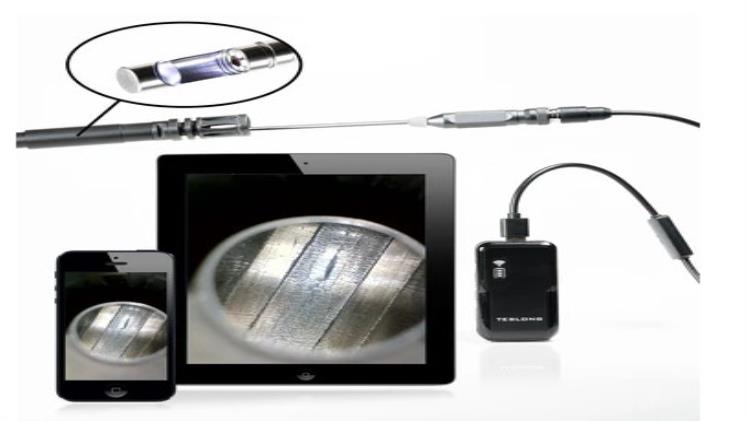

A rifle borescope is a rigid or semi-rigid optical instrument featuring a narrow-diameter probe, an integrated light source, and either an eyepiece or digital camera at its viewing end. Originally engineered to inspect the internal surfaces of firearm barrels for pitting, erosion, and fouling, the device typically consists of a long insertion tube ranging from 4mm to 8mm in diameter, relay lenses or a fiber-optic image bundle, and LED illumination at the distal tip. Modern versions from manufacturers like Teslong connect directly to smartphones or dedicated monitors, delivering real-time high-definition video.

In the automotive context, this tool has become a cornerstone of industrial inspection work. Its slim profile slides effortlessly into spark plug holes, intake ports, transmission fill openings, and exhaust passages—spaces that would otherwise require hours of disassembly to visually assess. Mechanics use it to evaluate cylinder wall scoring, carbon buildup on valve faces, corrosion inside coolant passages, and gear tooth condition within sealed gearboxes. For vehicle repair shops facing tight turnaround times, the borescope eliminates guesswork by providing direct visual evidence of a problem’s severity before committing to a repair plan. This means fewer unnecessary teardowns, more accurate estimates for customers, and significantly reduced diagnostic labor costs across every job that involves hidden component evaluation.

Canadian mechanics face unique pressures—from high customer expectations to the physical toll that harsh winters take on vehicle components. A rifle borescope addresses these challenges by enabling non-invasive diagnostics that keep vehicles on the lift for shorter periods. Instead of pulling an entire intake manifold to investigate a suspected valve issue, a technician can insert the probe through an accessible port and confirm the diagnosis in minutes. This approach dramatically improves accuracy because decisions are based on visual evidence rather than educated guesses, and it enhances shop safety by reducing the number of heavy components that need to be removed and reinstalled.

Traditional diagnostic methods often involve speculative disassembly—removing parts to visually confirm what a scan tool or symptom suggests. Each removed bolt adds labor time, increases the risk of damaging fasteners or gaskets, and extends the vehicle’s stay in the bay. A borescope inspection typically takes five to fifteen minutes and requires no teardown. For Canadian shops billing labor at competitive rates, this efficiency translates into more vehicles serviced per day and higher profit margins per repair order. The tool pays for itself within a handful of jobs that would have otherwise demanded exploratory surgery.

With high-resolution imaging, mechanics can detect early-stage cylinder wall scoring that indicates ring failure, identify carbon deposits restricting airflow through intake runners, and spot hairline cracks in exhaust manifolds before they become catastrophic leaks. Inside transmissions, the borescope reveals chipped gear teeth or debris accumulation that points to bearing wear. These capabilities allow shops to provide customers with photographic proof of needed repairs, building trust and justifying estimates with undeniable visual documentation.

Not every shop needs to own a borescope outright, especially independent mechanics or small operations that encounter deep-cavity inspections only a few times per month. Borescope rental offers a practical path to accessing professional-grade equipment without the upfront capital commitment. The process starts with identifying your specific inspection needs—engine cylinder work demands different probe lengths and diameters than transmission or exhaust system evaluations. Once you’ve clarified what you’ll inspect most frequently, researching Canadian rental providers becomes straightforward. Compare available units based on imaging quality, probe flexibility, and included accessories like mirror attachments or articulating tips. Pay close attention to rental terms including daily versus weekly rates, damage liability policies, and whether the provider includes cleaning supplies or protective cases. Many rental agreements require a deposit, so factor that into your budgeting. Reading reviews from other automotive professionals helps separate reliable suppliers from those offering outdated or poorly maintained equipment.

Resolution should be your first consideration—look for units offering at least 720p video output, as lower resolutions make it difficult to distinguish between minor surface imperfections and genuine damage. Probe length matters too; most automotive applications require between 30cm and 100cm of insertion depth, so confirm the rental unit covers your anticipated reach. Durability is critical in a shop environment where tools get bumped, dropped, and exposed to oil. Tungsten-braided or steel-sheathed probes withstand the rigors of daily use far better than plastic housings. Finally, check whether the unit offers adjustable LED intensity, since over-lit images wash out surface details while under-lit ones hide defects entirely.

Several Canadian equipment rental platforms now carry inspection-grade borescopes alongside their traditional tool inventories. National chains with locations across provinces often stock multiple models suited to automotive work, and their staff can advise on probe specifications for your application. Online rental marketplaces have also expanded into this space, offering shipping directly to your shop with prepaid return labels. Local industrial supply houses in major cities like Toronto, Calgary, and Vancouver frequently maintain rental fleets and provide the added benefit of in-person demonstrations before you commit. Networking through Canadian automotive trade groups or forums can also surface peer recommendations for rental providers who specialize in diagnostic equipment and understand the demands mechanics place on these tools.

Getting meaningful results from a borescope inspection depends on preparation and technique. Before inserting the probe, clean the access point thoroughly—oil residue, coolant, or carbon debris on the entry surface can smear across the lens within seconds, rendering your inspection useless. Select the appropriate attachment for your task: a side-view mirror tip works best for examining cylinder walls through spark plug holes, while a forward-viewing tip suits linear passages like exhaust pipes or coolant channels. Power on the unit and verify image clarity on your display before insertion, adjusting LED brightness to a moderate setting you can fine-tune once inside. During insertion, advance the probe slowly and steadily, rotating it gently to navigate bends rather than forcing it through resistance. Keep mental track of your insertion depth relative to the component’s known dimensions so you can correlate what you see on screen with specific internal locations. When you identify an area of concern, capture still images or video clips immediately—these become your documentation for customer communication and warranty claims.

For engine cylinder inspections, remove the spark plug and position the piston at bottom dead center to maximize visible wall area. Rotate the mirror attachment slowly through 360 degrees, pausing to document any vertical scoring or cross-hatch wear patterns. When examining exhaust manifolds or catalytic converters, insert through the upstream oxygen sensor port and look for thermal cracking, substrate deterioration, or blockage from melted material. Brake caliper inspections benefit from feeding a slim probe through the bleeder valve opening to check for internal corrosion or piston seal degradation—particularly valuable on vehicles exposed to heavy road salt. For transmission evaluations, the dipstick tube or fill plug provides access to observe gear surfaces and check for metallic debris clinging to internal magnets.

The most frequent error is excessive LED brightness, which creates glare on reflective metal surfaces and obscures the very defects you’re searching for. Start at fifty percent intensity and increase only in dark, matte-surfaced cavities. Another common mistake involves rushing the insertion and missing subtle damage—slow, deliberate movement with frequent pauses yields far better results than a quick pass. Never force the probe past an obstruction, as bending the optics or scratching the lens compromises image quality permanently. After each use, clean the probe tip with lens-safe wipes and inspect the insertion tube for kinks or abrasion. Store the unit in its protective case rather than leaving it loose in a drawer where other tools can damage the delicate optics. Consistent maintenance extends equipment life and ensures reliable image quality across every inspection.

Canadian winters create diagnostic scenarios that mechanics in milder climates rarely encounter. Consider a common case: a direct-injection engine developing a persistent misfire after years of cold starts. Rather than removing the cylinder head to inspect intake valves, a technician inserts a borescope through the intake runner and immediately confirms walnut-sized carbon deposits restricting airflow—a ten-minute inspection that saves hours of labor and gives the customer photographic proof justifying a walnut blasting service. In another scenario, a truck owner reports transmission shudder during cold morning shifts. Accessing the fill port with a slim probe reveals crystallized fluid residue on the valve body, a condition accelerated by extreme temperature cycling that Canadian vehicles endure between heated garages and subzero highways.

Fuel injector inspections represent another powerful application. By feeding the borescope through the injector bore after removal, mechanics can identify tip deposits or spray pattern obstructions that electrical testing alone cannot reveal. HVAC system evaluations benefit similarly—threading the probe through a blower motor opening exposes evaporator core corrosion or debris accumulation causing musty cabin odors, a persistent complaint in humid Canadian spring conditions. These real-world examples demonstrate how industrial inspection technology adapted from firearms maintenance directly addresses the diagnostic puzzles that Canadian climate and driving conditions create, turning complex teardown jobs into quick visual confirmations that keep repair bays productive and customers informed.
